PixLite T16X-S Mk3
Price range: $1,249.00 through $1,369.00
Description
Maximum flexibility and cost efficiency
16-output long-range pixel controller transmitting 96 universes over Cat5e/6 to up to 16 R1/R2 receivers at distances up to 300m. Ideal for highly distributed installations needing many small, dispersed pixel runs.

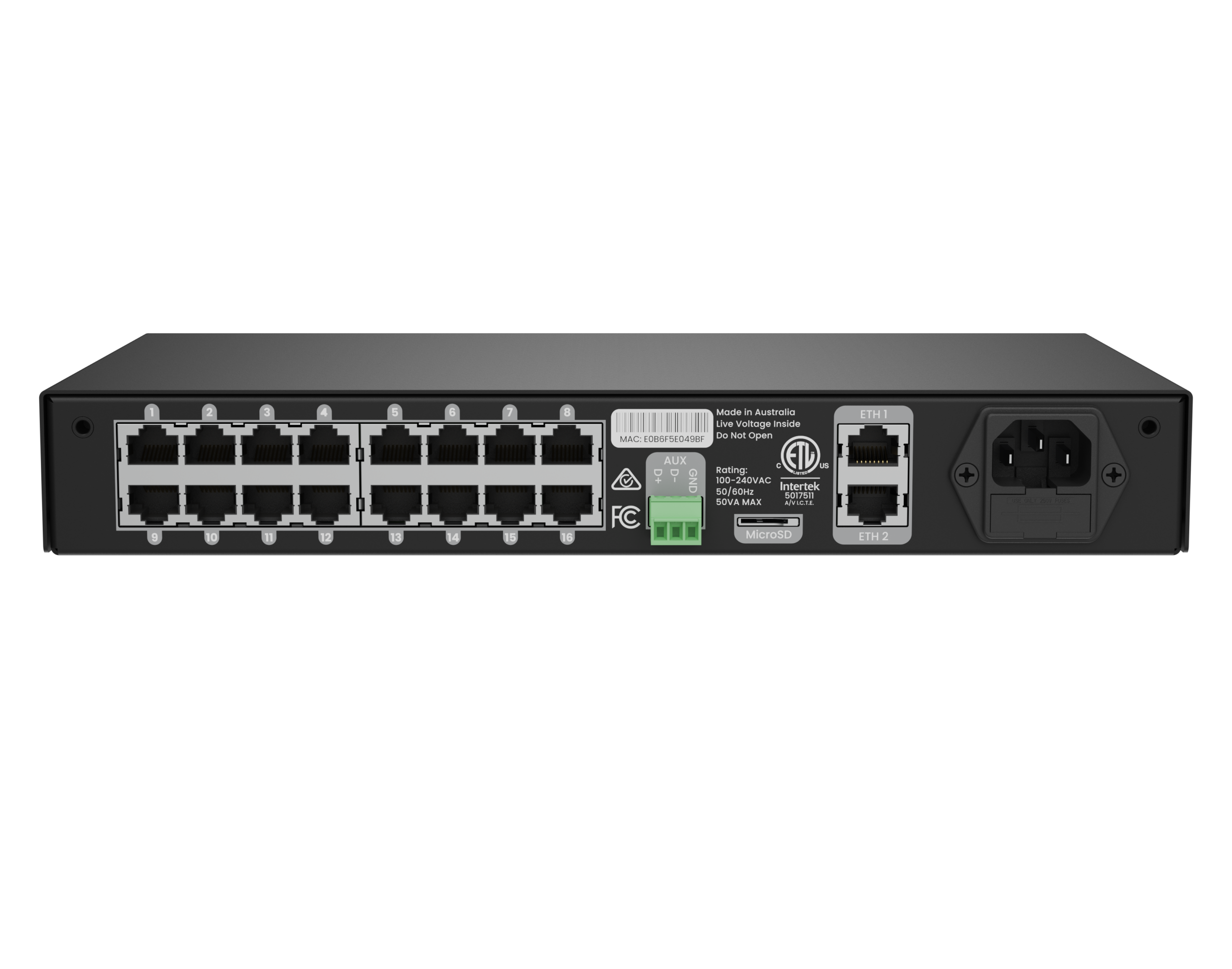

The PixLite® T16X-S Mk3 joins the bestselling T8-S Mk3 as a more powerful long-range solution with 16 output connectors — each supporting half the signal capacity of the T8. Think of the T16 as the T8 with each of its 8 outputs split in two. Transmits up to 96 universes to sixteen R1 or R2 receivers at up to 300m. When paired with the R1F-S, fewer transmitters are needed for discrete pixel runs — reducing system cost by up to 40% on highly dispersed pixel installations. Aluminum chassis, direct panel/wall/rack mountable, microSD for SHOWTime™, DMX512 In/Out, 100–240V AC. Made in Australia with a five-year warranty. Ships with US power cable.
Additional information
| Weight | 1500 g |
|---|---|
| Dimensions | 25.8 × 20.6 × 5.7 cm |
| Coating | Standard, Conformal Coated |
